Design Philosophy
The Fancy II Series carries forward the minimalist aesthetics of the first-generation model, adhering to the design philosophy of "refinement through simplicity." When retracted, the screen's bottom bar neatly seals the opening of the casing, creating a unified, elegant appearance. The smooth lines not only enhance visual appeal but also provide functional protection against dust, insects, and moisture.
Fancy II integrates advanced performance with forward-thinking design. Its clean, modern form factor blends effortlessly into a wide range of environments—from private residences to commercial venues and customized interior installations. Equipped with Grandview's newly engineered 20W DC motor, it supports 110-240V global input, features built-in electromagnetic shielding for strong anti-interference performance, and operates with less than 50dB noise. The motor is rated for over 20,000 operational cycles.An exclusive S-curve acceleration and deceleration algorithm ensures smooth, quiet transitions during extension and retraction. This intelligent motion profile eliminates sudden jerks, minimizes vibration, and prevents excessive tension on the screen fabric, thereby protecting internal components and extending product lifespan.
Available Casing Colours: White / Black (Custom Order Only)
Core Advantages
All-New 20W DC Motor
110-240V wide voltage input—no external transformer required
Built-in electromagnetic shielding for high resistance to interference
Durable design rated for over 20,000 cycles
Quiet performance with noise level under 50dB
S-curve motor control delivers smoother movement and reduces fabric strain
Electronic Limit Control
Customizable electronic upper and lower limits for precise travel positioning.
Large Format Support
Available in sizes up to 220 inches (16:9), suitable for premium residential, commercial, and professional AV applications.
Multiple Smart Control Options
Supports RS-485, dry contact, 433MHz RF, infrared, and 12V trigger.
Upgraded Protective Casing Design
Sealed construction protects the screen from dust, mold, moisture, and insects, extending lifespan
Grounding design resolves static buildup from retraction friction—particularly in dry climates—preventing dust attraction and potential damage to electronic components
Redesigned L-Bracket Mounting System
Slimmer and stronger L-shaped brackets provide tighter, more seamless integration with ceiling and wall surfaces for a cleaner, built-in look.
| Brand |
Liberty Grandview
|
| Series |
Fancy II
|
| Screen Size |
113 Inches
|
| Ratio |
16:10
|
| General |
Viewing Area W x H2434 x 1521 mm
|
| Fabric |
AW6
|
 Liberty Grandview Fabric AW6 |
|
| Liberty Grandview Fancy II Tab Tension Screen Specifications |
|
| Liberty Grandview Fancy II Tab Tension screen User Manual |
|
| Liberty Grandview Fancy II Tab Tension Screen Drawings |
|

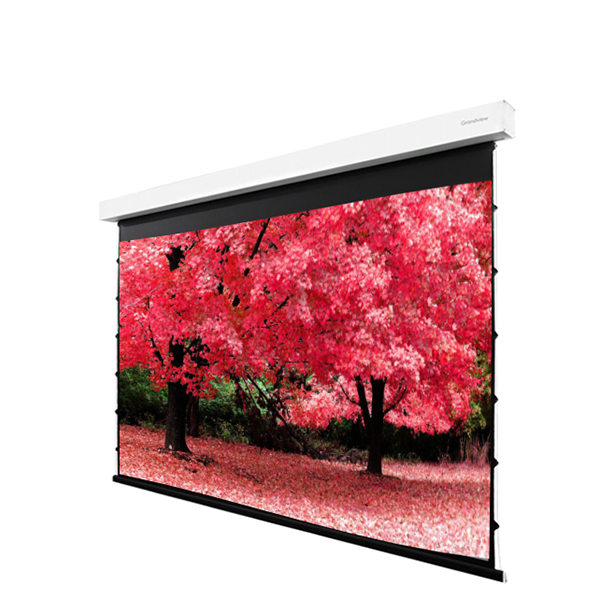

Brief Product Description
- Size: 113” (16:10).
- New design elements include the screw-free endcap design
- patented Spring-Sealed Mechanism that ensures a smooth and enclosed finish.
- Fabric: Acoustic Transparent Acoustic Weave AW6
- Gain : 0.8
- Viewing Angle : 150 °
Warranty: One year from the date of dispatch, strictly against any manufacturing defects only.
