Liberty Grandview IP Control Box Pack (LAN)
202500IP-PACK
Brand: Liberty
Click Here-
Price : 26,380
- Availability : Out Of Stock
- Delivery : 2 to 4 Weeks
Step 1 : Set a new IP address for the screen.
a: Connect the screen with computer through LAN cable.
b: Set the IP address of the computer to “192.168.1.xxx” (“xxx” can be 1 to 255 except 2).
c: Type the IP address “192.168.1.2” in browser to visit the screen with access password “ms1234”.
d: Choose “Config” and enter the setup password “ms1503”.
e: Change the IP address to “192.168.0.100” and set Default gateway to “192.168.0.1”.
You can also change the access passwords, setup passwords or name of the screen on this page.

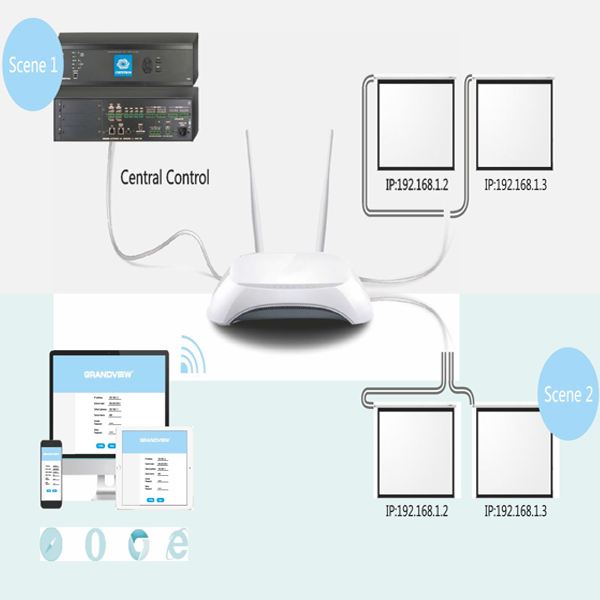

Step 2 : Connect the screen with the Router via LAN cable.
Step 3a : If you are using phone, tablet or computer, make sure they are connecting to the same router through LAN or WIFI, type the
new IP address “192.168.0.100” in browser to visit the screen with access password “ms1234” (or the new password you
changed in Step e).
Step 3b : If you are using central control system, use the control code above after setting up the connection
