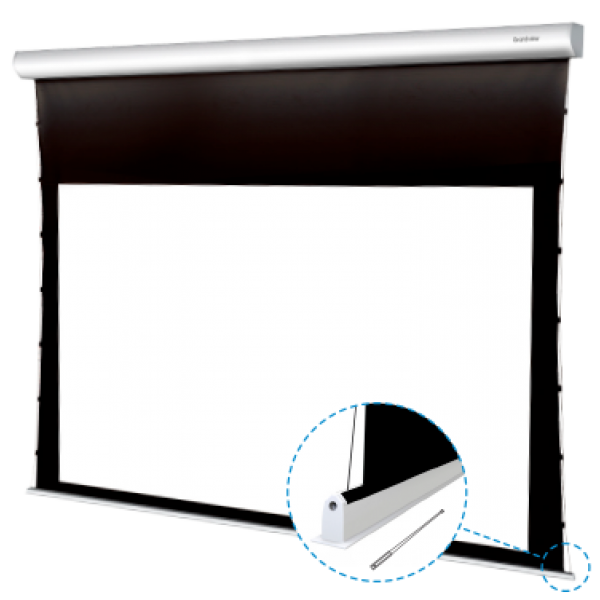

Tension Adjustment System
With a unique adjustable auto tension system, the screen surface is taut and tensioned at every point to ensure a perfect projection surface. If adjustment is needed, the hexagon knob can be turned to ensure there are no wrinkles, V waves or imper fections.
* Control options, installation and standard/optional accessories are the same as the Integrated Motorized screen.
- Model A applies to sizes 150"-240", Model B applies to sizes 92 "-150"
- Floating Wall Mount / Ceiling Mount / Suspended Mount - various mounting options make the installation easy and quick
- RF / IR Remote Control, IP Control, Dry Contact, etc. - the variety of control systems allows controls to be done via central control , remote control and even with a smartphone
| Control |
|
|
 |
 |
 |
| RF / IR remote control |
IP Network control |
Dry Contact Control |

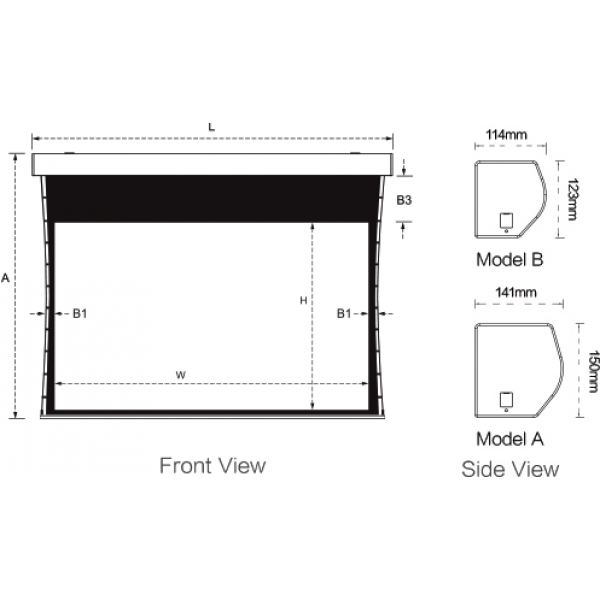

| Installation Figures |
 |
| Standard Accessories |
 |
| Optional Accessories |
 |
| Brand |
Liberty Grandview
|
| Screen Size |
100 Inches
|
| Ratio |
4:3
|
| Type |
Tab Tension
|
| General |
| Blackdrop B3(mm ) |
400 |
| Border |
L & R Border
B1(mm): 130 |
| Endcap Model A / B / C |
B |
| Overall Height |
2087 |
| Overall Length |
2386 |
| Viewing Area W x H |
2030x1524 |
| Net Weight |
15.4 |
| Technical |
Power98
|
| Sub Brand |
Legacy
|
