JVC LX –UH1 Projector
High-performance 4K UHD/HDR home theatre projector with compact design and wide lens shift for easy installation
Video projectors have come a long way - and none more so than JVC's new compact LX-UH1, which punches well above its weight, delivering vibrant 4K HDR images that are stunningly realistic. And there's no need to always pull the curtains thanks to its 2,000-lumen output. The LX-UH1 is ideal for all your broadcast, streaming and BD viewing.
- Dynamic contrast ratio: 100,000: 1
- Brightness: 2,000 Im
- Compatible with HDMI standards (4K/60P 4:4:4) and HDCP 2.2
- Available in 2 colours (black and white)
Compact Design for Installation Convenience
This small projector produces big 4K images despite its compact dimensions: just 33 cm by 33 cm, and less than 13.5 cm high*. The space-saving LX-UH1 can thus be installed wherever is most convenient, hanging from the ceiling or placed on a shelf.
Wide Lens Shift Function: ±60% Vertical, ±23% Horizontal
A compact design facilitates projector installation - but if lens shift is insufficient it may require keystone adjustment, which can degrade picture quality. There are no such worries with the LX-UH1, however, as it features a wide lens shift: ±60% vertically and ±23% horizontally.
1.6x High-resolution Lens
The LX-UH1 features a 1.6-times zoom lens. For a typical 100- inch picture size, the projector would be installed between 3 and 4.8 m / 9.8' and 15.7' from the screen - an added convenience when space is at a premium. Refer to Projection Distance Chart on the back of the brochure for more.
Newly Developed 0.47-inch DMD for Bright High-definition 4K Images
4K resolution (3840 x 2160 pixels) is four times full HD resolution. As 4K content rapidly becomes mainstream for broadcasting, streaming and optical discs, you can be sure that the LX-UH1 will make the most of it, providing a bright, vibrant picture with all the detail. Impressive color reproduction almost makes you feel immersed in the scenes unfolding on the screen.
Bright Picture and 100% Coverage of Rec. 709
Viewing movies, broadcast and other content in a room that's well lit can be difficult with a conventional projector. But despite its compact size, the LX-UH1 offers brightness of 2,000 lumens thanks to a highly efficient lamp system. And 100% coverage of the Rec. 709 gamut means you enjoy beautiful colour rendition.
HDR (High Dynamic Range) for More Realistic Image
High Dynamic Range (HDR) is a technology to accurately reproduce realistic, dynamic images in which finer gradations and colours are clearly visible, even in the lightest and darkest areas of the picture. The LX-UH1 supports both HDR10 for UHD BD content and Hybrid Log Gamma (HLG) for broadcast signals.
Full 4K Support with HDCP2.2

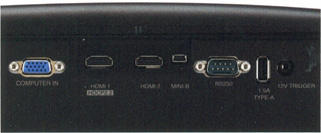

The LX-UH 1 is compatible with full-spec 4K input at 18Gbps throughput - supporting 4K/60p 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals - for more vivid colors and subtle gradation s. What's more, HDCP2.2 compatibility means that this projector supports the latest video-streaming services and copyright-protected content such as UHD Blu-ray discs.
UHD- 3840 X 2160P
||Manual; Vertical ±60%, Horizontal ±23%
||370 W (Standby: 0.5 W)
||AC 100- 240 V, 50/60 Hz
|Projection Display Size
||60 inch – 200 inch (diagonal)
||Lamp life: Approx. 4,000 hours (Normal mode), Approx. 10,000 hours (Eco mode)
||1.6x manual zoom/focus lens; 1=14.3-22.9 mm, F 1.809
||29 dB/33 dB (Eco/Normal)
|Light source lamp
||NSH 265 W
||4.8 kg/10.56 lbs.
||0.7-inch Full HD D-ILA (1920 x 1080) x3
|Dimensions(W x H x D)
||333 x 135 x 331.5 mm
|JVC LX-UH1 Catalog
|JVC LX-UH1 User Manual
Brief Product Description
- 2,000 lm lumens of brightness
- UHD- 3840 X 2160P Resolution
- DLP Technology
- Dynamic contrast ratio: 100,000:1
- Lamp Wattage - 265W
Warranty: one year on Projector - Carry In. Lamp 500 hours or 90 days, whichever is earlier, against any manufacturing defects.
